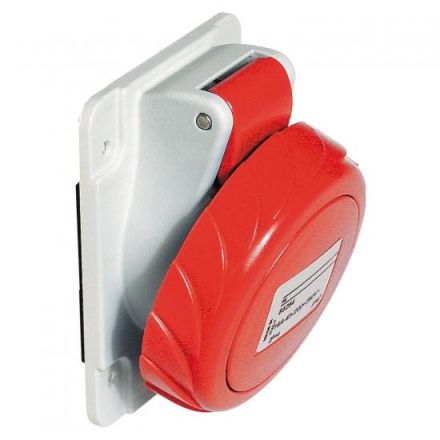

PratiKa straight panel socket. It has 3P+E poles, a rated current of 32 A and an operating voltage of 400 VAC. The dimensions of the base plate are (W) 95 mm x (H) 100 mm. The protection class is IP65 and IK09. The fire resistance is 850 °C. The cable entries are designed for flexible or rigid cables. The cross-section of the cables in 32 A is 2.5 mm to 10 mm. The color of the base is light gray (RAL 7035) with red for easy identification of the operating voltage. The frequency is 50 Hz or 60 Hz. The clock position of the contact is 6 h.
