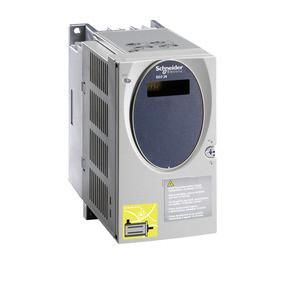

Schneider Electric SD326DU68S2 stepper motor amplifier

Schneider Electric SD326DU68S2 stepper motor amplifier

In stock

SKU: 677678

Price on request

€1,628.60

€0

Overview

Stepper motor amplifier, SD326, pulse/direction, = 6.8A. Product series: Lexium SD3 - Product or component type: Motion stepper drive - Device abbreviation: SD326 - Rated auxiliary voltage range: 100...120 V, 200...240 V.

Property	Value
Degree of protection (IP):	IP20
Number of PROFINET interfaces:	0.0
Mains frequency:	50/60 Hz
Rated output current:	6.8 A
Max. Output voltage:	24.0 V
Mains voltage:	100.0 to 240.0 V
Number of input phases:	1
Number of HW interfaces parallel:	0.0
Number of HW interfaces other:	0.0
Supports protocol for data highway:	no
Number of HW interfaces serial RS-422:	1.0
Number of HW interfaces serial RS-485:	0.0
4-quadrant operation possible:	no
Max. Output frequency:	200000.0 Hz
Use in industrial areas permitted:	yes
With optical interface:	no
Height:	145.0 mm
Supports protocol for LON:	no
Width:	72.0 mm
Relative symmetrical mains voltage tolerance:	10.0 %
Supports protocol for AS-Interface Safety at Work:	no
Depth:	140.0 mm
Type of converter:	other
Integrated brake chopper:	no
Max. delivered power with linear load at rated output voltage:	0.42 kW
Supports protocol for TCP/IP:	no
Supports protocol for DeviceNet:	no
Supports protocol for PROFINET IO:	no
Supports protocol for PROFIBUS:	no
Supports protocol for EtherNet/IP:	no
Supports protocol for INTERBUS-Safety:	no
Supports protocol for SUCONET:	no
Supports protocol for CAN:	no
Supports protocol for KNX:	no
Use in residential and commercial areas permitted:	yes
Supports protocol for INTERBUS:	no
Number of HW interfaces serial RS-232:	0.0
Number of HW interfaces serial TTY:	0.0
Supports protocol for other bus systems:	yes
Supports protocol for ASI:	no
Supports protocol for SafetyBUS p:	no
Supports protocol for Modbus:	no
With control element:	yes
Supports protocol for PROFIsafe:	no
Supports protocol for DeviceNet Safety:	no
Number of HW interfaces Industrial Ethernet:	0.0
Relative symmetrical mains frequency tolerance:	5.0 %
Supports protocol for SERCOS:	no
Number of output phases:	3
Supports protocol for PROFINET CBA:	no
Supports protocol for Foundation Fieldbus:	no
Max. delivered power at square. Load at rated output voltage:	0.42 kW
Number of USB hardware interfaces:	0.0
With PC connection:	no
Number of analog outputs:	1.0
Number of analog inputs:	3.0
Number of digital outputs:	2.0
Number of digital inputs:	6.0
Supports protocol for BACnet:	no
