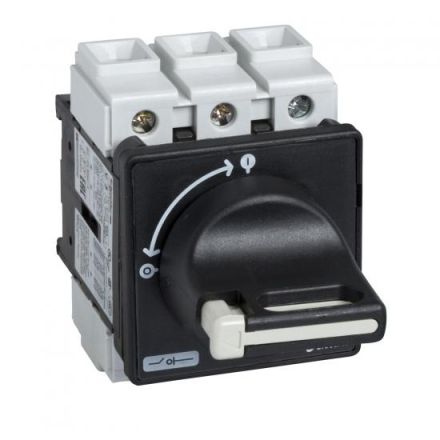

Schneider Electric VBF01 main switch

In stock
SKU: 675296
€24.48
Into a basketIn the basketGo

Overview

Load-break switches A range of safety control products that are easy to use and set up, with compact and ergonomic products for starter motor and stop motor requirements.

Feature Value
Number of poles: 3.0
Operating power: 5.5 kW
Number of auxiliary contacts as normally closed: 0.0
Number of auxiliary contacts as normally open: 0.0
Number of auxiliary contacts as changeover: 0.0
Rated continuous current Iu: 20.0 A
Max. Rated operating voltage Ue at AC: 690.0 V
Design as EMERGENCY STOP device: no
Protection class (IP), front: IP65
Connection type main circuit: screw connection
Device design: Built-in device, fixed installation technology
Design of the actuating element: short rotary handle
Suitable for floor mounting: no
Conditional Rated short-circuit current Iq: 10.0 kA
Integrated motor drive: no
Suitable for 4-hole front mounting: yes
Version as maintenance/repair switch: yes
Voltage release optional: no
Suitable for central front mounting: no
Suitable for intermediate installation: no
Suitable for distribution board installation: no
Design as main switch: yes
Design as safety switch: no
Motor drive optional: no
Lockable: yes
Design as reversing switch: no
Rated short-time withstand current Icw: 0.3 kA
Color of the actuating element: black
Rated operating voltage: 690.0 V
Rated operating power at AC-3, 400 V: 4.0 kW
Rated continuous current at AC-21, 400 V: 20.0 A
Number of switches: 1.0
Rated continuous current at AC-23, 400 V: 11.0 A

Characteristics

Number of auxiliary contacts as changeover contacts0.0
HABVBF01
ManufacturerSchneider Electric
HANVBF01
GTIN3389110201000
Connection type main circuitScrew connection
Number of auxiliary contacts as normally open0.0
Number of auxiliary contacts as normally closed0.0
Number of switches1.0
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchNo
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Design of the actuating elementShort twist grip
Conditional rated short-circuit current Iq10.0kA
Rated operational power at AC-3, 400 V4.0kW
Rated operating voltage690.0V
Rated continuous current Iu20.0A
Rated continuous current at AC-21, 400 V20.0A
Rated continuous current at AC-23, 400 V11.0A
Rated short-time withstand current Icw0.3kA
Color of the actuatorBlack
Suitable for floor mountingNo
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Suitable for distribution board installationNo
Suitable for intermediate constructionNo
Device typeBuilt-in device Fixed installation technology
Max. rated operating voltage Ue at AC690.0V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3.0
Protection class (IP), frontIP65
Voltage release optionalNo
LockableYes
