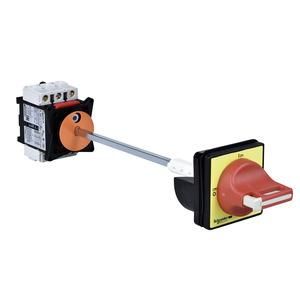

Schneider Electric VCCD02 EMERGENCY STOP main switch

Schneider Electric VCCD02 EMERGENCY STOP main switch

In stock

SKU: 676000

Price on request

€30.37

€0

Overview

Load-break switches A range of safety control products that are easy to use and set up, with compact and ergonomic products for starter motor and stop motor requirements.

Feature	Value
Number of poles:	3.0
Operating power:	4.0 kW
Number of auxiliary contacts as normally closed:	0.0
Number of auxiliary contacts as normally open:	0.0
Number of auxiliary contacts as changeover:	0.0
Rated continuous current Iu:	12.0 A
Max. Rated operating voltage Ue at AC:	690.0 V
Design as EMERGENCY STOP device:	yes
Protection class (IP), front:	IP65
Connection type main circuit:	Screw connection
Device design:	Built-in device, fixed installation technology
Design of the actuating element:	Door coupling rotary drive
Suitable for floor mounting:	no
Conditional Rated short-circuit current Iq:	10.0 kA
Integrated motor drive:	no
Suitable for 4-hole front mounting:	no
Version as maintenance/repair switch:	no
Voltage release optional:	no
Suitable for central front mounting:	yes
Suitable for intermediate installation:	no
Suitable for distribution board installation:	no
Design as main switch:	yes
Design as safety switch:	no
Motor drive optional:	no
Lockable:	yes
Design as reversing switch:	no
Rated short-time withstand current Icw:	0.3 kA
Color of the actuating element:	red
Rated operating voltage:	0.0 to 690.0 V
Rated operating power at AC-3, 400 V:	3.0 kW
Rated continuous current at AC-21, 400 V:	12.0 A
Number of switches:	1.0
Rated continuous current at AC-23, 400 V:	8.1 A
