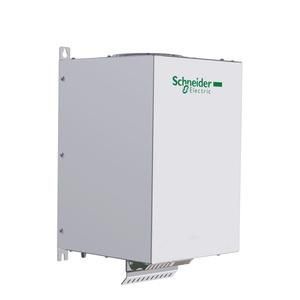

Schneider Electric VW3A46104 23A 400 V 50 Hz for frequency converter passive filter

In stock

SKU: 777118

Price on request

€2,095

€0

Overview

Passive filter power supply 400 V, 50 Hz, three-phase. For frequency converter, use for ATV630D11N4, ATV650D11N4, ATV650D11N4E. Filter operating current output 23 A, filter operating current input 22 A, power KW 11 kW, power HP 15 HP. Quantity per converter 1 time. THDI 10%. If the filter is used with ATV650U07N4/N4E - D90N4/N4E inverters, it must be installed in a separate cabinet to ensure protection class IP 55.

Property	Value
Rated operating frequency:	50.0 to 60.0 Hz
Rated current AC:	22.0 A
Suitable as du/dt filter:	no
Suitable as radio interference filter:	no
Suitable as sine filter:	no
Suitable as an audio frequency blocker:	no
Max. rated operating voltage Ue:	400.0 V
Max. operating current (Ith) at operating voltage DC:	22.0 A
Number of poles, primary side:	3.0
Degree of protection (IP):	IP20
