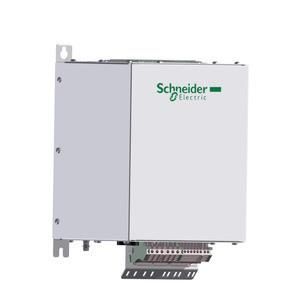

Schneider Electric VW3A46122 14A 400 V 50 Hz for frequency converter passive filter

In stock
SKU: 777102
€2,690.93
Into a basketIn the basketGo

Overview

Passive filter power supply 400 V, 50 Hz, three-phase. For frequency converter, use for ATV630U75N4, ATV650U75N4, ATV650U75N4E. Filter operating current output 14.5 A, filter operating current input 14 A, power KW 10 HP. Quantity per converter 1 time. THDI 5%. If the filter is used with ATV650U07N4/N4E - D90N4/N4E inverters, it must be installed in a separate cabinet to ensure protection class IP 55.

Property Value
Rated operating frequency: 50.0 to 60.0 Hz
Rated current AC: 14.0 A
Suitable as du/dt filter: no
Suitable as radio interference filter: no
Suitable as sine filter: no
Suitable as an audio frequency blocker: no
Max. rated operating voltage Ue: 400.0 V
Number of poles, primary side: 3.0
Protection class (IP): IP20

Characteristics

HAB14A 400 V 50 Hz for frequency converter
ManufacturerSchneider Electric
HANVW3A46122
GTIN3606480640131
Max. rated operating voltage Ue400.0V
IP protection)IP20
