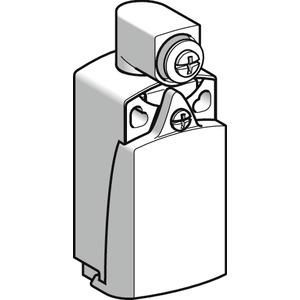

Schneider Electric XCKD2101P16 metal position switch

Schneider Electric XCKD2101P16 metal position switch

In stock

SKU: 678903

Price on request

€44.08

€0

Overview

OsiSense XC position switch XCK D. with drive for rotary axis actuation. Connection M16, actuator (with drive for rotary axis actuation), switching contacts Ö + S, switching principle snap. Complete devices, metal-encapsulated. W/D/H 30 x 31 x 65 mm (without actuator). Protection class IP 66 and IP 67 as well as IK 06 (also available in modular design). Also available with ISO M20 x1.5, ISO M16 x1.5 and Pg11.

Property	Value
Opener:	1.0
Maker:	1.0
Changer:	0.0
Lenght:	30.0 mm
Width:	31.0 mm
Height:	65.0 mm
Protection class (IP):	IP65
Switching function:	Snap-action switching element
Actuator:	other
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Version of the Interface:	without
Design of the electrical connection:	Cable entry (metric)
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	metal
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated operating current Ie at AC-15, 230 V:	3.0 A
Alignment of the actuating element:	other
Switching function latching:	no
