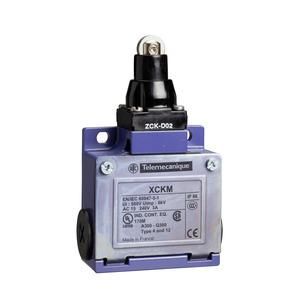

Schneider Electric XCKM102 IP66 position switch

In stock

SKU: 677296

Price on request

€50.89

€0

Overview

XCKM position switch steel roller plunger, 1 opener and 1 closer, snap function, Pg11 connection

Property	Value
Opener:	1.0
Maker:	1.0
Changer:	0.0
Length:	30.0 mm
Width:	64.0 mm
Height:	64.0 mm
Protection class (IP):	IP66/IP67
Switching function:	Snap-action switching element
Actuator:	Roller plunger
Explosion protection category for dust:	without
Housing design:	Special design
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the electrical connection:	Cable entry PG
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	metal
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated operating current Ie at AC-15, 230 V:	3.0 A
Alignment of the actuating element:	roller plunger straight
Switching function latching:	no
