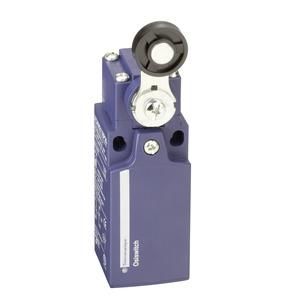

Schneider Electric XCKN2118P20 optimum position switch

Schneider Electric XCKN2118P20 optimum position switch

In stock

SKU: 677219

Price on request

€24.39

€0

Overview

OsiSense XC. XCKN position switch. Connection M20, actuator roller lever with plastic roller, switching contacts NC + NO, switching principle snap, PU 20. Complete devices, plastic-encapsulated. W/D/H 30 x 30 x 65 mm (without actuator). Protection class IP 65 and IK 04.

Property	Value
Opener:	1.0
Maker:	1.0
Changer:	0.0
Length:	44.5 mm
Width:	30.0 mm
Height:	108.0 mm
Protection class (IP):	IP65
Switching function:	other
Actuator:	roller lever
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Interface design:	without
Design of the electrical connection:	Cable entry (metric)
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.1 A
Rated operating current Ie at AC-15, 230 V:	3.0 A
Alignment of the actuating element:	other
Switching function latching:	no
