Rated operating current Ie at DC-13, 230 V0.27 A
Electronic outputNo

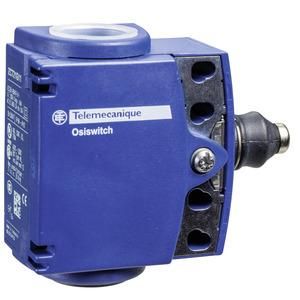

HABXCKT2111P16 Universal
HANXCKT2111P16
GTIN3389110214376
Number of safety-related auxiliary contacts1.0
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the electrical connectionCable entry (metric)
Alignment of the actuatorOther
Rated operating current Ie at AC-15, 230 V3.0A
Housing coatingOther
Width58.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designCuboid
Height51.0 mm
Length30.0 mm
With status displayNo
Switching functionSnap action contact
Switching function latchingNo
IP protection)IP66/IP67
Ambient temperature during operation-20.0 to 70.0 °C
Housing materialPlastic
Forced openingYes
