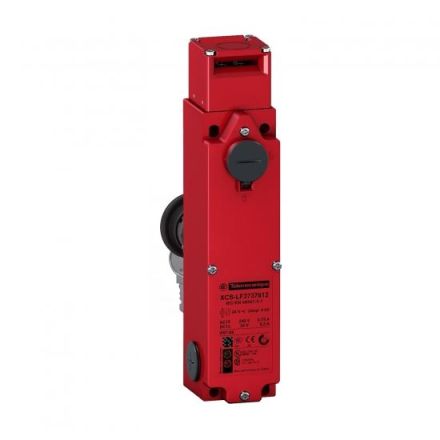

Schneider Electric XCSL564B2 XCSL safety position switch

In stock
SKU: 702792
€674.72
Into a basketIn the basketGo

Overview

XCSL564B2 XCSL safety position switch. Position switch manufacturer article number: XCSL564B2, manufacturer article name: XCSL-Sicherh.-Pos.sch.

Property Value
Number of contacts as normally closed: 1.0
Number of contacts as normally open: 1.0
Number of contacts as changeover: 0.0
Number of safety-related auxiliary contacts: 0.0
Design of the interface: without
Design of the interface for safety-related communication: without
Design of the electrical connection: Cable entry PG
Design of the switching element: Slow-action switching element
Rated operating current Ie at AC-15, 230 V: 0.75 A
Rated operating current Ie at DC-13, 24 V: 0.55 A
Rated control supply voltage for solenoid drive AC 50 Hz: 24.0 V
Rated control supply voltage for solenoid drive AC 60 Hz: 24.0 V
Rated control supply voltage magnetic drive DC: 24.0 V
Width of the sensor: 44.0 mm
Explosion protection category for gas: without
Explosion protection category for dust: without
Suitable for safety functions: yes
Housing design: other
Height of the sensor: 205.0 mm
Sensor length: 51.0 mm
With escape release: no
With status display: yes
Protection class (IP): IP66/IP67
Ambient temperature during operation: -25.0 to 60.0 °C
Housing material: Plastic
Closing force: 1400.0 N
With auxiliary release: yes

Characteristics

HABXCSL-Security-Pos.sch.
ManufacturerSchneider Electric
HANXCSL564B2
GTIN3389118074637
Number of contacts as normally open1.0
Number of contacts as changeover0.0
Number of contacts as opener1.0
Number of safety-related auxiliary contacts0.0
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the electrical connectionCable entry PG
Rated operating current Ie at AC-15, 230 V0.75A
Rated operating current Ie at DC-13, 24 V0.55A
Width of the sensor44.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designOther
Height of the sensor205.0 mm
Length of the sensor51.0 mm
With status displayYes
IP protection)IP66/IP67
Ambient temperature during operation-25.0 to 60.0 °C
Housing materialPlastic
