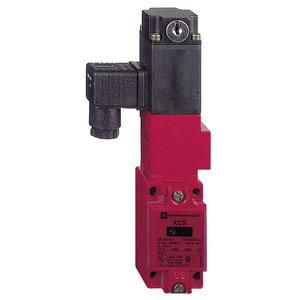

Schneider Electric XCSL761B2 safety position switch

In stock

SKU: 681809

Price on request

€572.88

€0

Overview

XCSL safety position switch

Property	Value
Number of contacts as normally closed:	2.0
Number of contacts as normally open:	1.0
Number of contacts as changeover:	0.0
Number of safety-related auxiliary contacts:	0.0
Design of the interface:	without
Design of the interface for safety-related communication:	without
Design of the electrical connection:	other
Design of the switching element:	slow-action switching element
Rated operating current Ie at AC-15, 125 V:	3.0 A
Rated operating current Ie at AC-15, 230 V:	1.5 A
Rated operating current Ie at DC-13, 125 V:	0.55 A
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated control supply voltage magnetic drive AC 50 Hz:	24.0 V
Rated control supply voltage magnetic drive AC 60 Hz:	24.0 V
Rated control supply voltage magnetic drive DC:	24.0 V
Width of the sensor:	98.0 mm
Explosion protection category for gas:	without
Explosion protection category for dust:	other
Suitable for safety functions:	yes
Housing design:	Cuboid
Height of the sensor:	146.0 mm
Length of the sensor:	44.0 mm
With escape release:	no
With status display:	yes
Protection class (IP):	IP67K
Ambient temperature during operation:	-25.0 to 40.0 °C
Material of the housing:	metal
Locking force:	20.0 N
Type of locking:	closed current principle
With auxiliary release:	no
Housing coating:	other
