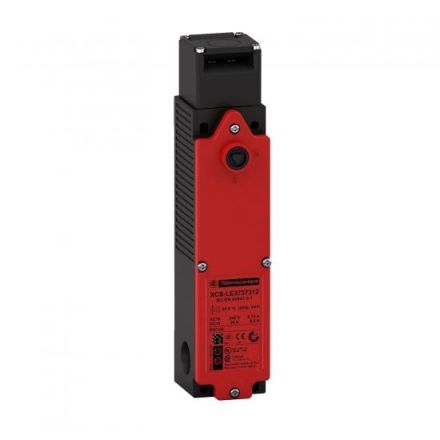

Schneider Electric XCSLE2525342 XCSLE-Si- plastic 2Ö+2S - sealed position switch

In stock
SKU: 702797
€168.91
Into a basketIn the basketGo

Overview

XCSLE2525342 XCSLE-Si- plastic switch 2Ö+2S - sealed position switch Manufacturer article number: XCSLE2525342, Manufacturer article name: XCSLE-Si- plastic switch. 2Ö+2S - gest. sch

Property Value
Number of contacts as normally closed: 1.0
Number of contacts as normally open: 1.0
Number of contacts as changeover: 0.0
Number of safety-related auxiliary contacts: 0.0
Design of the interface: without
Design of the interface for safety-related communication: without
Design of the electrical connection: Cable entry (metric)
Design of the switching element: Slow-action switching element
Rated operating current Ie at AC-15, 230 V: 0.75 A
Rated operating current Ie at DC-13, 24 V: 0.55 A
Rated control supply voltage for magnetic drive AC 50 Hz: 230.0 V
Rated control supply voltage for magnetic drive AC 60 Hz: 230.0 V
Rated control supply voltage magnetic drive DC: 230.0 V
Width of the sensor: 44.0 mm
Explosion protection category for gas: without
Explosion protection category for dust: other
Suitable for safety functions: yes
Housing design: other
Height of the sensor: 205.0 mm
Length of the Sensors: 51.0 mm
With escape release: no
With status display: yes
Protection class (IP): IP67K
Ambient temperature during operation: -25.0 to 60.0 °C
Housing material: Plastic
Locking force: 20.0 N
Type of locking: Closed-circuit principle
With auxiliary release: no
Housing coating: other

Characteristics

HABXCSLE-Si- plastic-coated 2Ö+2S - marked sch
ManufacturerSchneider Electric
HANXCSLE2525342
GTIN3606489413651
Number of contacts as normally open1.0
Number of contacts as changeover0.0
Number of contacts as opener1.0
Number of safety-related auxiliary contacts0.0
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the electrical connectionCable entry (metric)
Rated operating current Ie at AC-15, 230 V0.75A
Rated operating current Ie at DC-13, 24 V0.55A
Housing coatingOther
Width of the sensor44.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustOther
Suitable for security functionsYes
Housing designOther
Height of the sensor205.0 mm
Length of the sensor51.0 mm
With status displayYes
IP protection)IP67K
Ambient temperature during operation-25.0 to 60.0 °C
Housing materialPlastic
Schneider Electric XCSLE2525342 XCSLE-Si- plastic 2Ö+2S - sealed position switch
Schneider Electric XCSLE2525342 XCSLE-Si- plastic 2Ö+2S - sealed position switch
