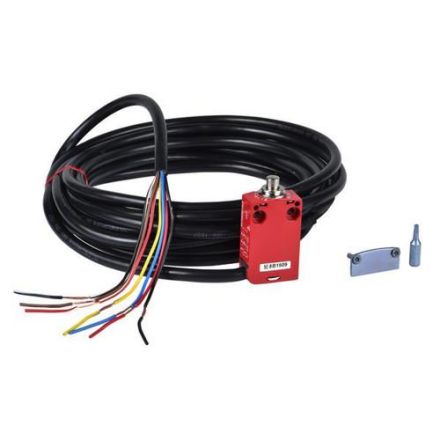

Schneider Electric XCSM3702L5 OEOES stepped roll 5m safety position switch

In stock

SKU: 677166

Price on request

€118.47

€0

Overview

XCSM safety position switch, metal encapsulated, metal roller plunger, 2 openers and 1 maker, 5m cable

Property	Value
Number of contacts as openers:	2.0
Number of contacts as makers:	1.0
Number of contacts as changeover contacts:	0.0
Number of safety-related auxiliary contacts:	0.0
Interface design:	without
Design the interface for safety-related communication:	without
Design of the electrical connection:	pre-assembled with cable
Design of the switching element:	slow-action switching element
Rated operating current Ie at AC-15, 230 V:	1.5 A
Rated operating current Ie at DC-13, 230 V:	0.1 A
Rated control supply voltage for solenoid drive AC 50 Hz:	240.0 V
Rated control supply voltage for solenoid drive AC 60 Hz:	240.0 V
Rated control supply voltage magnetic drive DC:	250.0 V
Width of the sensor:	30.0 mm
Explosion protection category for gas:	without
Explosion protection category for dust:	other
Suitable for safety functions:	yes
Housing design:	other
Height of the sensor:	70.0 mm
Sensor length:	16.0 mm
With escape release:	no
With status display:	no
Protection class (IP):	IP68
Ambient temperature during operation:	-25.0 to 70.0 °C
Housing material:	Metal
Closing force:	35.0 N
Type of locking:	Closed-circuit principle
With auxiliary release:	no
Housing coating:	other
