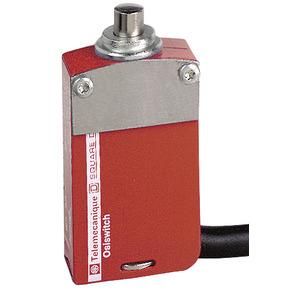

Schneider Electric XCSM4110L2 OEOESS spring plunger 2m safety position switch

In stock

SKU: 681853

Price on request

€86.30

€0

Overview

XCSM safety position switch, metal encapsulated, metal plunger, 2 breakers and 2 makers, 2m cable

Property	Value
Number of contacts as breakers:	2.0
Number of contacts as makers:	2.0
Number of contacts as changeover contacts:	0.0
Number of safety-related auxiliary contacts:	0.0
Interface design:	without
Design the interface for safety-related communication:	without
Design of the electrical connection:	with pre-assembled cable
Design of the switching element:	other
Rated operating current Ie at AC-15, 230 V:	1.5 A
Rated operating current Ie at DC-13, 230 V:	0.1 A
Rated control supply voltage for solenoid drive AC 50 Hz:	240.0 V
Rated control supply voltage for solenoid drive AC 60 Hz:	240.0 V
Rated control supply voltage magnetic drive DC:	250.0 V
Width of the sensor:	30.0 mm
Explosion protection category for gas:	without
Explosion protection category for dust:	other
Suitable for safety functions:	yes
Housing design:	other
Height of the sensor:	60.0 mm
Sensor length:	16.0 mm
With escape release:	no
With status display:	no
Protection class (IP):	IP68
Ambient temperature during operation:	-25.0 to 70.0 °C
Housing material:	Metal
Closing force:	42.5 N
Type of Guard locking:	Closed-circuit principle
With auxiliary release:	no
Housing coating:	other
