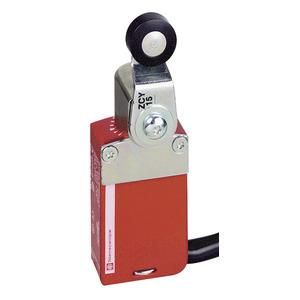

Schneider Electric XCSM4115L5 OEOESS jump copper reel 5m safety position switch

In stock
SKU: 681857
€119.43
Into a basketIn the basketGo

Overview

XCSM safety position switch, metal encapsulated, roller lever with plastic roller, 2 openers and 2 closers, 5m cable

Property Value
Number of contacts as openers: 2.0
Number of contacts as closers: 2.0
Number of contacts as changeover contacts: 0.0
Number of safety-related auxiliary contacts: 0.0
Design of the interface: without
Design of the Interface for safety-related communication: without
Design of the electrical connection: with pre-assembled cable
Design of the switching element: other
Rated operating current Ie at AC-15, 230 V: 1.5 A
Rated operating current Ie at DC-13, 230 V: 0.1 A
Rated control supply voltage for solenoid drive AC 50 Hz: 240.0 V
Rated control supply voltage for solenoid drive AC 60 Hz: 240.0 V
Rated control supply voltage magnetic drive DC: 250.0 V
Width of the sensor: 30.0 mm
Explosion protection category for gas: without
Explosion protection category for dust: other
Suitable for safety functions: yes
Housing design: other
Height of the sensor: 94.0 mm
Sensor length: 34.0 mm
With escape release: no
With status display: no
Protection class (IP): IP68
Ambient temperature during operation: -25.0 to 70.0 °C
Housing material: Metal
Closing force: 0.1 N
Type of Guard locking: Closed-circuit principle
With auxiliary release: no
Housing coating: other

Characteristics

Rated operating current Ie at DC-13, 230 V0.1 A
HABXCSM4115L5 OEOESS Spring Copper Roll 5m
ManufacturerSchneider Electric
HANXCSM4115L5
GTIN3389110244328
Number of contacts as normally open2.0
Number of contacts as changeover0.0
Number of contacts as opener2.0
Number of safety-related auxiliary contacts0.0
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the electrical connectionPre-assembled with cable
Rated operating current Ie at AC-15, 230 V1.5A
Housing coatingOther
Width of the sensor30.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustOther
Suitable for security functionsYes
Housing designOther
Height of the sensor94.0 mm
Length of the sensor34.0 mm
With status displayNo
IP protection)IP68
Ambient temperature during operation-25.0 to 70.0 °C
Housing materialMetal
