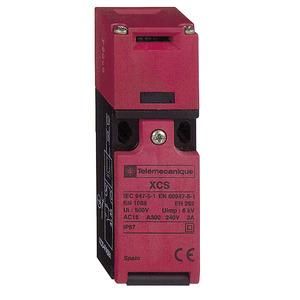

Schneider Electric XCSPA291 PG OEOE jump safety position switch

In stock

SKU: 681888

Price on request

€47.48

€0

Overview

XCSPA safety position switch, plastic-encapsulated, 1 break contact and 1 make contact, snap function - 1 cable entry Pg11 connection

Property	Value
Design of the interface for safety-related communication:	without
Suitable for safety functions:	yes
Protection class (IP):	IP67K
Material of the housing:	Plastic
With status display:	no
Ambient temperature during operation:	-25.0 to 70.0 °C
Explosion protection category for dust:	without
Rated operating current Ie at DC-13, 125 V:	0.55 A
Width of the sensor:	30.0 mm
Length of the sensor:	30.0 mm
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated operating current Ie at AC-15, 230 V:	3.0 A
Design of the electrical connection:	Cable entry PG
Number of contacts as normally open contacts:	0.0
Number of contacts as changeover contacts:	0.0
Number of contacts as normally closed contacts:	2.0
Design of the interface:	without
Forced opening:	yes
Design of the switching element:	Snap-action switching element
Number of safety-related auxiliary contacts:	0.0
Rated operating current Ie at AC-15, 125 V:	6.0 A
Explosion protection category for gas:	without
Housing design:	other
Height of the sensor:	94.0 mm
Housing coating:	other
