Rated operating current Ie at DC-13, 230 V0.27 A
Rated operating current Ie at DC-13, 125 V0.55 A
Rated operating current Ie at AC-15, 125 V6.0 A

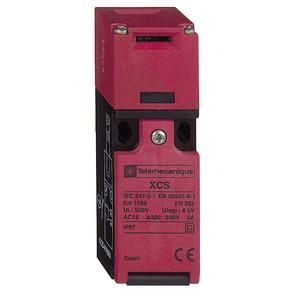

HABXCSPA593 NPT OES stepped
HANXCSPA593
GTIN3389110720600
Number of contacts as normally open1.0
Number of contacts as changeover0.0
Number of contacts as opener1.0
Number of safety-related auxiliary contacts0.0
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the electrical connectionOther
Rated operating current Ie at AC-15, 230 V3.0A
Housing coatingOther
Width of the sensor30.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designOther
Height of the sensor94.0 mm
Length of the sensor30.0 mm
With status displayNo
IP protection)IP67K
Ambient temperature during operation-25.0 to 70.0 °C
Housing materialPlastic
Forced openingYes
