Rated operating current Ie at DC-13, 230 V0.27 A
Rated operating current Ie at DC-13, 125 V0.55 A
Electronic outputNo
Rated operating current Ie at AC-15, 125 V6.0 A

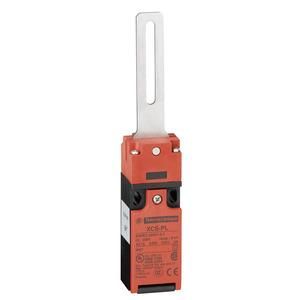

HABXCSPL552 OES M16 straight center
HANXCSPL552
GTIN3389110866339
Number of safety-related auxiliary contacts0.0
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the electrical connectionCable entry (metric)
Alignment of the actuatorOther
Rated operating current Ie at AC-15, 230 V3.0A
Housing coatingOther
Width30.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designCuboid
Height161.0 mm
Length30.0 mm
With status displayNo
Switching functionSlow-action switching element and snap-action switching element
Switching function latchingNo
IP protection)IP67K
Ambient temperature during operation-25.0 to 70.0 °C
Housing materialPlastic
Forced openingYes
