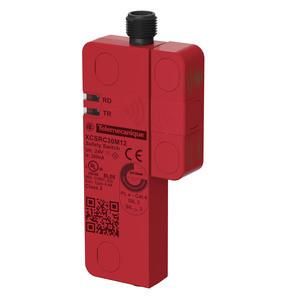

Schneider Electric XCSRC30M12 RFID security switch

In stock
SKU: 696560
€118.76
Into a basketIn the basketGo

Overview

RFID safety switch. Individual configuration, coding of up to 2 new transponders. Contactless RFID safety switch for connection to a safety module (individual configuration), connected in series (series configuration) or with integrated safety evaluation (standalone configuration). The switches can be supplied with uniquely coded transponders or with the option of teaching in up to 2 new transponders. Power supply 24 V DC. Connection via M12 connector.

Property Value
Rated supply voltage DC: 24.0 V
Suitable for safety functions: yes
Length of the sensor: 30.0 mm
Height: 108.5 mm
Type of actuation: Magnet
Width of the sensor: 15.0 mm
Performance level according to EN ISO 13849-1: Level e
Protection class (IP): IP67
Number of semiconductor outputs with signaling function: 0.0
Number of contact-based outputs with signaling function: 0.0
Number of safe semiconductor outputs: 0.0
Number of safe contact-based outputs: 5.0
Design of the interface for safety-related communication: other
Design of the electrical connection: M12 connector
Design of the switching output: PNP
Explosion protection category for gas: without
Explosion protection category for dust: without
Housing design: Cuboid
Housing coating: uncoated
Secured switching distance OFF: 35.0 mm
Secured switching distance ON: 10.0 mm
Max. output current at the safe output: 60.0 mA
Ambient temperature: -25.0 to 70.0 °C
Mechanical installation condition for sensor: other
Min. Output current: 60.0 mA
Cross-circuit/short-circuit detection possible: yes
Switching distance: 35.0 mm
Type of voltage: DC
With monitoring function for downstream devices: no
Housing material: other
SIL according to IEC 61508: 3
With status display: no

Characteristics

Mechanical installation condition for sensorOther
Secured switching distance ON10.0 mm
HABXCSRC30M12
ManufacturerSchneider Electric
HANXCSRC30M12
GTIN3389119634854
Type of operationMagnet
Design of the interface for safety-related communicationOther
Design of the switching outputPNP
Design of the electrical connectionConnector M12
Housing coatingUncoated
Width of the sensor15.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designCuboid
Height108.5 mm
Length of the sensor30.0 mm
With status displayNo
Performance Level according to EN ISO 13849-1Level e
SIL according to IEC 615083
Switching distance35.0 mm
IP protection)IP67
Voltage typeDC
Ambient temperature-25.0 to 70.0 °C
Housing materialOther
