Catalog

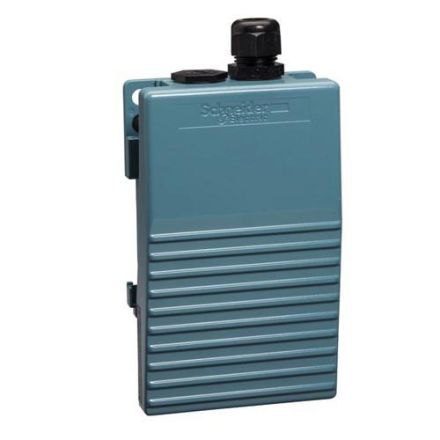

Schneider Electric XPEM111 single 1-stage 2NC+2S IP66 foot switch Harmony XPE

In stock
SKU: 931910
€122.74
Into a basketIn the basketGo

Overview

The Harmony XPE foot switches offer a convenient solution for switching industrial machines on or off with multiple operating modes such as pulse operation, inching operation or continuous operation. This metal foot switch is painted blue. There is a pedal for direct actuation. The auxiliary switches have a switching stage with 2 break contacts and 2 make contacts. Thanks to the high IP protection class and the wide operating temperature range, it is ideally suited for harsh environmental conditions. Validation and compliance with standards ensure use in many countries. Thanks to the Green Premium eco-label, you can get detailed information on material content, environmental impact and circular economy that supports your sustainability goals.

Property Value
Number of contacts as normally open: 2.0
Protection class (IP): IP66
Switching function latching: no
Number of contacts as normally closed: 2.0
Number of contacts as changeover: 0.0
Command type: On or off
With protective cover: no
With locking: no
Color: blue
Number of switching positions: 1.0
Suitable for safety functions: yes
Rated operating current Ie at AC-15, 230 V: 3.0 A
Material: metal
With protective insulation: no
Width: 104.0 mm
Depth: 172.0 mm
Protection class (NEMA): other
Height: 104.0 mm

Characteristics

HABSingle 1-stage 2NC+2S IP66
ManufacturerSchneider Electric
HANXPEM111
GTIN3389110650129
Number of contacts as normally open2.0
Number of contacts as changeover0.0
Number of contacts as opener2.0
Number of switching positions1.0
Rated operating current Ie at AC-15, 230 V3.0A
Width104.0 mm
ColorBlue
Suitable for security functionsYes
Height104.0 mm
Switching function latchingNo
IP protection)IP66
Protection class (NEMA)Other
Depth172.0 mm
MaterialMetal
Schneider Electric XPEM111 single 1-stage 2NC+2S IP66 foot switch Harmony XPE
Schneider Electric XPEM111 single 1-stage 2NC+2S IP66 foot switch Harmony XPE
€122.74
Into a basketIn the basketGo
