Schneider Electric XS108B3PAL2 inductive proximity switch

In stock

SKU: 689351

Price on request

€17.11

€0

Overview

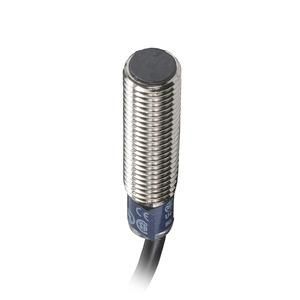

XS1 inductive proximity switch M8 cylindrical format, length 33mm, brass housing, switching distance 2mm, 12-24V DC, 2m cable

Property	Value
Switching distance:	2.5 mm
Voltage type:	AC/DC
Design of the switching output:	PNP/PNP
Mechanical installation condition for sensor:	flush
Performance level according to EN ISO 13849-1:	without
Immunity to magnetic fields:	immune to magnetic direct and alternating fields
Design of the interface:	without
Design of the switching function:	normally open contact
Type of actuation:	metallic target
Frequency:	2500.0 Hz
Length of the sensor:	33.0 mm
Pressure-resistant:	no
Rated control supply voltage DC:	12.0 to 24.0 V
Suitable for safety functions:	no
Sensor diameter:	8.0 mm
Number of semiconductor outputs with signaling function:	1.0
Number of contact-based outputs with signaling function:	0.0
Number of safe semiconductor outputs:	0.0
Number of safe contact-based outputs:	0.0
Design of the interface for safety-related communication:	without
Design of the electrical connection:	radial cable
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Housing coating:	nickel-plated
Cascadable:	no
Max. Output current at the safe output:	200.0 mA
Supply voltage:	12.0 to 24.0 V
With monitoring function for downstream devices:	no
Housing material:	metal
SIL according to IEC 61508:	without
