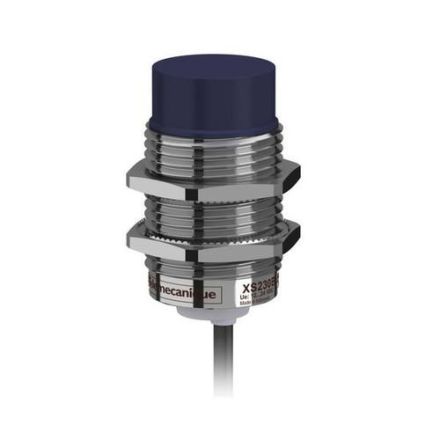

Schneider Electric XS230BLPAL2 M30 L51mm MS Sn 15mm 12-24V DC 2 m cable Inductive proximity switch

Schneider Electric XS230BLPAL2 M30 L51mm MS Sn 15mm 12-24V DC 2 m cable Inductive proximity switch

In stock

SKU: 777036

Price on request

€30.36

€0

Overview

OsiSense XS. XS2 inductive proximity switches, L51 mm, brass, cable 2 m. Dimensions M30 mm, output PNP, flush no, function NO, switching distance_mm 15. Cylindrical metal housing. Format M12, M18, M30. Connection 2 m cable, M8 connector, M12 connector, 3-pin. Output PNP / NPN, NO / NC. Flush or non-flush installation. Protection class IP 65 and IP 67. Operating voltage 12-24 V DC, limit range 10-36V.

Property	Value
Switching distance:	15.0 mm
Type of voltage:	AC/DC
Design of the switching output:	PNP/PNP
Mechanical installation condition for sensor:	not flush
Performance level according to EN ISO 13849-1:	without
Immunity to magnetic Fields:	immune to interference from direct magnetic fields
Interface design:	without
Switching function design:	normally open contact
Type of actuation:	metallic target
Frequency:	60.0 Hz
Sensor length:	50.6 mm
Pressure-resistant:	no
Rated control supply voltage DC:	12.0 to 24.0 V
Suitable for safety functions:	no
Sensor diameter:	30.0 mm
Number of semiconductor outputs with signaling function:	1.0
Number of contact-based outputs with signaling function:	0.0
Number of safe semiconductor outputs:	1.0
Number of safe contact-based outputs:	0.0
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Cable radial
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Housing coating:	nickel-plated
Cascadable:	no
Max. Output current at the safe output:	100.0 mA
Supply voltage:	12.0 to 24.0 V
With monitoring function for downstream devices:	no
Housing material:	metal
SIL according to IEC 61508:	without
