Schneider Electric XS630B1MAL2 M30 proximity switch

Schneider Electric XS630B1MAL2 M30 proximity switch

In stock

SKU: 676547

Price on request

€86.23

€0

Overview

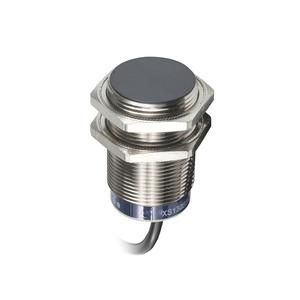

XS6 inductive proximity switch in cylindrical design M30, length 62mm, brass, switching distance Sn 15mm, power supply 24-240V AC/DC, 2m connecting cable

Property	Value
Switching distance:	15.0 mm
Voltage type:	AC/DC
Design of the switching output:	2-wire
Mechanical installation condition for sensor:	flush
Rated control supply voltage AC 50 Hz:	24.0 to 240.0 V
Performance level according to EN ISO 13849-1:	without
Immunity to magnetic fields:	immune to magnetic direct and alternating fields
Rated control supply voltage AC 60 Hz:	24.0 to 240.0 V
Design of the interface:	without
Design of the switching function:	normally open contact
Type of actuation:	metallic target
Frequency:	500.0 Hz
Sensor length:	61.6 mm
Pressure-resistant:	no
Rated control supply voltage DC:	24.0 to 240.0 V
Suitable for safety functions:	no
Sensor diameter:	30.0 mm
Number of semiconductor outputs with signaling function:	0.0
Number of contact-based Outputs with signaling function:	0.0
Number of safe semiconductor outputs:	0.0
Number of safe contact-based outputs:	0.0
Design of the interface for safety-related communication:	without
Design of the electrical connection:	radial cable
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Housing coating:	nickel-plated
Cascadable:	no
Max. Output current at the safe output:	200.0 mA
Supply voltage:	24.0 to 240.0 V
With monitoring function for downstream devices:	no
Housing material:	metal
SIL according to IEC 61508:	without
