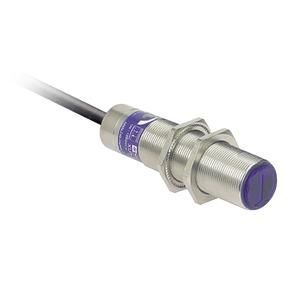

Schneider Electric XU8M18MA230 10cm metal light switch

In stock
SKU: 688708
€119.86
Into a basketIn the basketGo

Overview

XU8 optoelectronic sensor, design 18mm, reflection light sensor with background suppression, switching distance Sn 0.12m, power supply 24-240V AC/DC, 2m connecting cable

Property Value
Ambient temperature: -25.0 to 55.0 °C
Design of the switching output: other
Explosion protection category for gas: without
With restart lock: no
Setting range: 120.0 mm
Housing material: metal
Switching frequency: 25.0 Hz
With RS-232 communication interface: no
With DeviceNet communication interface: no
Explosion protection category for dust: without
Analog output -10 V ... +10 V: no
Number of safe contact-based outputs: 0.0
With communication interface INTERBUS: no
Design of the electrical connection: Cable radial
Button function: dark switching
Lenght of the sensor: 82.0 mm
Sensor diameter: 18.0 mm
Setting method: manual setting
Number of semiconductor outputs with signaling function: 1.0
Safety type according to IEC 61496-1: 1
Equipment protection class: Protection class 0
Number of contact outputs with signaling function: 0.0
With analog communication interface: no
Light type: Infrared light
Rated control supply voltage AC 50 Hz: 24.0 to 240.0 V
With SSI communication interface: no
With communication interface RS-422: no
Triangulation: Background suppression
Analog output 0 V ... 10 V: no
With monitoring function for downstream devices: no
With PROFIBUS communication interface: no
Cable sheath material: other
Suitable for safety functions: no
With CANOpen communication interface: no
With communication interface AS-Interface: no
Housing design: Cylinder, thread
With other analog output: no
Pre-failure message: no
Laser protection class: without
Number of safe semiconductor outputs: 1.0
Rated switching distance: 120.0 mm
Design of the switching function: Normally open (NO)
Scanning range: 120.0 mm
Material of the optical surface: Plastic
Max. Output current at the safe output: 200.0 mA
With Ethernet communication interface: no
Design of the interface for safety-related communication: other
Analog output 4 mA ... 20 mA: no
With RS-485 communication interface: no
Response time: 20.0 ms
With reflector: no
Rated control supply voltage AC 60 Hz: 24.0 to 240.0 V
Analog output 0 mA ... 20 mA: no
With communication interface SSD: no
Rated control supply voltage DC: 24.0 to 240.0 V
Max. switching distance: 120.0 mm
Max. Output current: 200.0 mA
Voltage type: AC/DC
With time function: no
Protection class (IP): IP67K

Characteristics

Design of the switching functionNormally open (NO)
Switching frequency25.0 Hz
Rated control supply voltage AC 50 Hz24.0 to 240.0 V
HABXU8M18MA230 10cm metal
ManufacturerSchneider Electric
HANXU8M18MA230
GTIN3389110736441
Design of the interface for safety-related communicationOther
Design of the switching outputOther
Design of the electrical connectionCable radial
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCylinder, thread
Length of the sensor82.0 mm
IP protection)IP67K
Voltage typeAC/DC
Ambient temperature-25.0 to 55.0 °C
Housing materialMetal
