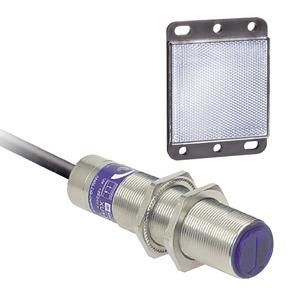

XU9 optoelectronic sensor, design 18mm, polarized reflection light barrier, switching distance Sn 2m, power supply 24-240V AC/DC, 2m connecting cable
| Property | Value |
| Switching distance: | 2000.0 mm |
| Switching distance max.: | 3000.0 mm |
| Reflector ab. min.: | 1000.0 mm |
| Current Imax.: | 200.0 mA |
| Voltage AC 50Hz: | 24.0 to 240.0 V |
| Voltage AC 60Hz: | 24.0 to 240.0 V |
| Voltage DC: | 24.0 to 240.0 V |
| Button function: | dark switching |
| Protection class (IP): | IP67K |
| Depth: | 82.0 mm |
| Diameter: | 18.0 mm |
| Response time: | 20.0 ms |
| Switching frequency: | 25.0 Hz |
| Laser protection class: | without |
| Type of voltage: | AC/DC |
| Material of the housing: | metal |
| With communication interface SSI: | no |
| With communication interface AS-Interface: | no |
| With time function: | no |
| With communication interface DeviceNet: | no |
| Execution of the switching function: | Normally open (NO) |
| With communication interface INTERBUS: | no |
| With communication interface Analog: | no |
| With communication interface Ethernet: | no |
| Analog output 4 mA ... 20 mA: | no |
| With other analog output: | no |
| With communication interface PROFIBUS: | no |
| With reflector: | no |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Analog output -10 V ... +10 V: | no |
| With communication interface SSD: | no |
| With communication interface CANOpen: | no |
| With communication interface RS-485: | no |
| Analog output 0 V ... 10 V: | no |
| Light type: | polarized red light |
| Material of the optical surface: | plastic |
| With communication interface RS-422: | no |
| Setting method: | manual setting |
| With communication interface RS-232: | no |
| Number of semiconductor outputs with signaling function: | 1.0 |
| Number of contact-based outputs with signaling function: | 0.0 |
| Number of safe semiconductor outputs: | 0.0 |
| Number of safe contact-based outputs: | 0.0 |
| Design of the interface for safety-related communication: | other |
| Design of the electrical connection: | Cable radial |
| Design of the switching output: | 2-wire |
| Equipment protection class: | Protection class 0 |
| Explosion protection category for gas: | without |
| Explosion protection category for dust: | without |
| Housing design: | Cylinder, thread |
| Max. Output current at the safe output: | 200.0 mA |
| Ambient temperature: | -25.0 to 55.0 °C |
| Safety type according to IEC 61496-1: | 1 |
| With monitoring function for downstream devices: | no |
| Pre-failure message: | no |
| With restart lock: | no |
