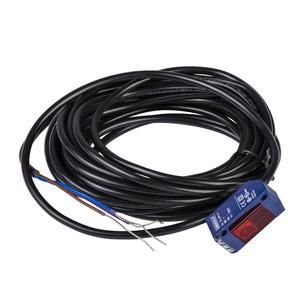

OsiSense XU optoelectronic multifunction sensors. XUM-Optoe. Sensor, S, cable 2 m. Dimensions 34 x 12 x 20, nominal voltage 12-24 DC, switching distance_A, switching distance_B, switching distance_C, switching distance_D. Max. switching distance (m) depending on the selected function. A One-way light barrier. B Reflective light barrier (pol.). C Light sensor. D Light sensor with background suppression. (Is also required when functioning as a one-way light barrier. New multifunctional sensors (with patented Osiconcept technology). For devices for AC control circuits, a short-circuit fuse (fine fuse 5 x 20 mm 0.6 A/250 V fast) must be provided externally! Version S transmitter, E receiver.
| Property | Value |
| Range of the protective field: | 0.0 m |
| Version of the switching output: | other |
| Rated switching distance: | 10000.0 mm |
| Voltage AC 50Hz: | 0.0 V |
| Voltage AC 60Hz: | 0.0 V |
| Voltage DC: | 12.0 to 24.0 V |
| Current Imax.: | 100.0 mA |
| Button function: | dark switching |
| Protection class (IP): | IP65 |
| Length: | 0.0 mm |
| Width: | 20.0 mm |
| Height: | 34.0 mm |
| Diameter: | 0.0 mm |
| Design of the interface for safety-related communication: | other |
| Explosion protection category for gas: | without |
| Number of safe contact outputs: | 0.0 |
| Design of the electrical connection: | cable |
| Laser protection class: | other |
| With communication interface INTERBUS: | no |
| With communication interface RS-485: | no |
| With communication interface Ethernet: | no |
| With reflector: | no |
| Max. Output current at the safe output: | 100.0 mA |
| Analog output 4 mA ... 20 mA: | no |
| Housing design: | Cuboid |
| AWG number: | 0.0 |
| With communication interface SSD: | no |
| Pre-failure message: | no |
| With communication interface CANOpen: | no |
| With restart lock: | no |
| Analog output -10 V ... +10 V: | no |
| Housing material: | plastic |
| Analog output 0 V ... 10 V: | no |
| Light type: | infrared light |
| With analog communication interface: | no |
| With PROFIBUS communication interface: | no |
| Switching function design: | other |
| Safety type according to IEC 61496-1: | 1 |
| Explosion protection category for dust: | none |
| Min. reflector distance: | 30000.0 mm |
| Light spot: | 0.0 mm² |
| Max. Opening angle: | 0.0 ° |
| Material of the optical surface: | Plastic |
| Number of contact outputs with signaling function: | 0.0 |
| Suitable for safety functions: | no |
| Analog output 0 mA ... 20 mA: | no |
| Wavelength of the sensor: | 0.0 nm |
| Equipment protection class: | Protection class 0 |
| With communication interface RS-422: | no |
| Switching voltage of the OSSD in the high state: | 0.0 V |
| Max. Switching distance: | 14000.0 mm |
| Switching frequency: | 250.0 Hz |
| Number of safe semiconductor outputs: | 0.0 |
| With communication interface AS-Interface: | no |
| Response time: | 2.0 ms |
| With other analog output: | no |
| With monitoring function of downstream devices: | no |
| Scope of delivery of the one-way system: | Transmitter |
| With RS-232 communication interface: | no |
| Number of semiconductor outputs with reporting function: | 0.0 |
| With SSI communication interface: | no |
| With DeviceNet communication interface: | no |
| Cable sheath material: | other |
| Ambient temperature: | -25.0 to 55.0 °C |
| Setting method: | Teach-In |
| Voltage type: | DC |
| With time function: | no |
