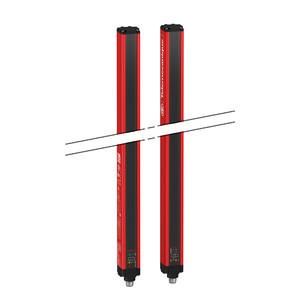

Schneider Electric XUSL2E30H076N XUSL type 2 Hp=760mm safety light grid

In stock

SKU: 689658

Price on request

€1,267.61

€0

Overview

XUSL safety light curtain type 2, hand protection, standard detection range, protective field height Hp 760mm, beam distance R 30mm

Property	Value
Resolution of the light curtain:	30.0 mm
Protective field height:	760.0 mm
Scope of delivery of the one-way system:	Transmitter and receiver
Suitable for safety functions:	yes
Length of the sensor:	31.0 mm
Rated control supply voltage DC:	24.0 V
Height of the sensor:	813.0 mm
Width of the sensor:	29.4 mm
Range of the protective field:	12.0 m
Number of semiconductor outputs with signaling function:	0.0
Number of contact-based outputs with signaling function:	0.0
Number of safe semiconductor outputs:	2.0
Number of safe contact outputs:	0.0
Hiding possible:	no
Design of the interface for safety-related communication:	other
Design of the switching output of the OSSD:	PNP/PNP
Design of the electrical connection:	M12 connector
Equipment protection class:	Protection class 1
Detection capacity for test specimens:	30.0 mm
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Cascadable:	no
Voltage type:	AC/DC
Max. Output current at the safe output:	400.0 mA
Ambient temperature:	-10.0 to 55.0 °C
With muting function:	yes
Override possible:	no
Reaction time:	11.0 ms
Reduced resolution:	no
Switching voltage of the OSSD in the high state:	24.0 V
Safety type according to IEC 61496-1:	2
With beam coding:	no
Clock control possible:	no
With monitoring function for downstream devices:	no
Sensor wavelength:	950.0 nm
With restart lock:	yes
Protection class (IP):	IP65
