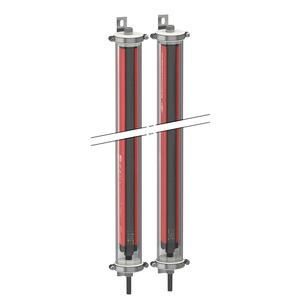

Schneider Electric XUSL2E30H106NWH XUSL type 2 Hp=1060mm R=30mm safety light grid

Schneider Electric XUSL2E30H106NWH XUSL type 2 Hp=1060mm R=30mm safety light grid

In stock

SKU: 689620

Price on request

€2,592.45

€0

Overview

XUSL safety light curtain type 2 IP69K, hand protection with heating, standard detection range, protective field height Hp 1060mm, beam distance R 30mm

Property	Value
Resolution of the light curtain:	30 mm
Protective field height:	1060 mm
Scope of delivery of the one-way system:	Transmitter and receiver
Suitable for safety functions:	yes
Length of the sensor:	76 mm
Rated control supply voltage Us at DC:	24 V
Height of the sensor:	1220 mm
Width of the sensor:	75 mm
Range of the protective field:	10 m
Number of safe semiconductor outputs:	2
Blanking possible:	no
Design of the interface for safety-related communication:	other
Design of the switching output of the OSSD:	PNP
Design of the electrical connection:	M12 connector
Equipment protection class:	Protection class 1
Detection capacity for test specimens:	30 mm
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Cascadable:	no
Type of voltage:	DC
Max. Output current at the safe output:	400 mA
Ambient temperature:	55 °C
With muting function:	yes
Override possible:	no
Response time:	14.5 ms
Reduced resolution:	no
Switching voltage of the OSSD in the high state:	24 V
Safety type according to IEC 61496-1:	2
With beam coding:	no
Clock control possible:	no
With monitoring function for downstream devices:	no
Sensor wavelength:	950 nm
With restart lock:	yes
Protection class (IP):	IP65
