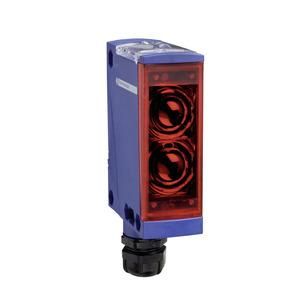

Schneider Electric XUX9APANT16 reflective photoelectric sensor

In stock
SKU: 677330
€131.55
Into a basketIn the basketGo

Overview

XUX optoelectronic sensor, compact design 92x71mm, polarized reflection light barrier, switching distance Sn 11m, power supply 12-24V DC, terminal block

Property Value
Switching distance: 11000.0 mm
Switching distance max.: 15000.0 mm
Reflector ab. min.: 5000.0 mm
Current Imax.: 100.0 mA
Voltage DC: 12.0 to 24.0 V
Button function: dark switching
Protection class (IP): IP65
Height: 92.0 mm
Width: 31.0 mm
Depth: 77.0 mm
Response time: 2.0 ms
Switching frequency: 250.0 Hz
Laser protection class: without
Type of voltage: AC/DC
Housing material: Plastic
With communication interface SSI: no
With communication interface AS-Interface: no
With time function: no
With DeviceNet communication interface: no
Execution of the switching function: Normally open (NO)
With INTERBUS communication interface: no
With Analog communication interface: no
With Ethernet communication interface: no
Analog output 4 mA ... 20 mA: no
With other analog output: no
With communication interface PROFIBUS: no
With reflector: no
Suitable for safety functions: no
Analog output 0 mA ... 20 mA: no
Analog output -10 V ... +10 V: no
With communication interface SSD: no
With communication interface CANOpen: no
With communication interface RS-485: no
Analog output 0 V ... 10 V: no
Light type: polarized red light
Material of the optical surface: plastic
With communication interface RS-422: no
Setting method: manual setting
With communication interface RS-232: no
Number of semiconductor outputs with reporting function: 1.0
Number of contact outputs with signaling function: 0.0
Number of safe semiconductor outputs: 0.0
Number of safe contact outputs: 0.0
Design of the interface for safety-related communication: other
Design of the electrical connection: terminal
Design of the switching output: PNP/PNP
Equipment protection class: Protection class 0
Explosion protection category for gas: without
Explosion protection category for dust: without
Housing design: Cuboid
Max. Output current at the safe output: 100.0 mA
Ambient temperature: -25.0 to 55.0 °C
Safety type according to IEC 61496-1: 1
With monitoring function for downstream devices: no
Pre-failure message: no
With restart lock: no

Characteristics

Design of the switching functionNormally open (NO)
Switching frequency250.0 Hz
HABXUX9APANT16
ManufacturerSchneider Electric
HANXUX9APANT16
GTIN3389110171501
Design of the interface for safety-related communicationOther
Design of the switching outputPNP/PNP
Design of the electrical connectionClamp
Width31.0 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsNo
Housing designCuboid
Height92.0 mm
Switching distance11000.0 mm
IP protection)IP65
Voltage typeAC/DC
Depth77.0 mm
Ambient temperature-25.0 to 55.0 °C
Housing materialPlastic
