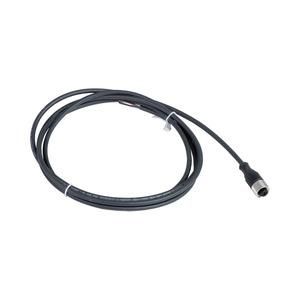

Schneider Electric XZCP1164L10 straight M12 5-pin PUR 10m cable XZ-Pre-wired socket

In stock

SKU: 689894

Price on request

€44.54

€0

Overview

Accessories all types XUSL. XZ-Pre-wired sockets, straight, M12 connector, 5-pin, PUR 10m cable.

Property	Value
Rated current In:	4.0 A
Cable sheath color:	black
With LED display:	no
Cable sheath material:	Polyurethane (PUR)
Contact base material:	other
Number of poles:	5.0
Connection field side:	M12
Type of plug contact, field side:	Female (socket)
Cable feed, field side:	straight
Connection, housing side:	other
Plug housing:	Female (socket)
Cable feed, housing side:	other
Cable length:	10.0 m
Halogen-free:	no
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-35.0 to 90.0 °C
Permissible Cable external temperature during assembly/handling:	-5.0 to 90.0 °C
Rated voltage:	300.0 V
Voltage resistance:	5.0 mOhm
Protection class (IP):	other
