Schneider Electric XZCP11V12L10 PUR socket M12 5Pin straight 10m connection cable

In stock

SKU: 697240

Price on request

€28.46

€0

Overview

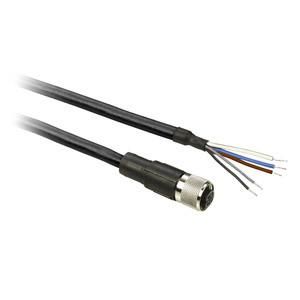

Sensor connection cable M12. PUR, socket M12 5Pin. straight version, length 10m.

Property	Value
Rated current In:	4.0 A
Cable sheath color:	black
With LED display:	no
Cable sheath material:	Polyurethane (PUR)
Contact base material:	other
Number of poles:	5.0
Field connection:	M12
Type of plug contact, field side:	Female (socket)
Cable feed, field side:	straight
Connection, housing side:	other
Plug housing:	Female (socket)
Cable feed, housing side:	other
Cable length:	10.0 m
Halogen-free:	no
Shielded:	no
Cable type:	multi-core
Radiation-crosslinked:	no
Material of the contact coating:	other
Permissible external cable temperature after installation without vibration:	-50.0 to 80.0 °C
Permissible Cable external temperature during assembly/handling:	-25.0 to 80.0 °C
Rated voltage:	60.0 V
Voltage resistance:	5.0 mOhm
Protection class (IP):	other
