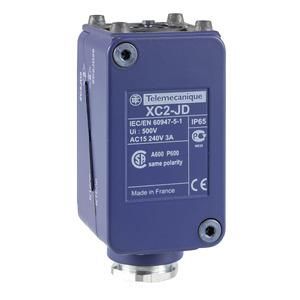

Schneider Electric ZC2JD1 plug OES lower part

In stock

SKU: 682657

Price on request

€131.09

€0

Overview

ZC2J position switch housing, separable housing, without display, switching outputs 1Ö/1S.

Property	Value
Opener:	0.0
Maker:	0.0
Changer:	1.0
Length:	41.0 mm
Width:	42.0 mm
Height:	81.0 mm
Diameter:	0.0 mm
Protection class (IP):	IP65
Switching function:	Snap-action switching element
Actuator:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With Status display:	no
Design of the interface:	without
Design of the electrical connection:	other
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	no
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	metal
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated operating current Ie at DC-13, 125 V:	0.0 A
Rated operating current Ie at DC-13, 24 V:	0.0 A
Rated operating current Ie at AC-15, 24 V:	0.0 A
Rated operating current Ie at AC-15, 125 V:	0.0 A
Rated operating current Ie at AC-15, 230 V:	3.0 A
Alignment of the actuating element:	other
Switching function latching:	no
