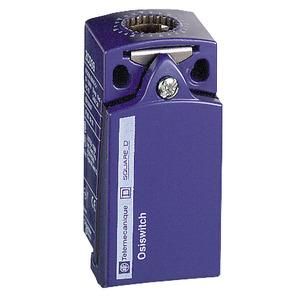

Schneider Electric ZCD35 Compact auxiliary switch housing

Schneider Electric ZCD35 Compact auxiliary switch housing

In stock

SKU: 686734

Price on request

€37.54

€0

Overview

ZCD position switch housing, compact, 1NC+2NO, stepped switching. Product series: OsiSense XC - Series name: Standard Compact - Product or component type: Position switch housing - Device short name: ZCD - Design: compact - Housing type: fixed - Associated head: ZCE02, ZCE63, ZCE29, ZCE01, ZCE13, ZCE08, ZCE07, ZCEH2, ZCE21, ZCE24, ZCE66, ZCE65, ZCE64, ZCE28, ZCE62, ZCE27, ZCEH0, ZCE11, ZCE14, ZCE67, ZCE10, ZCE05, ZCE06 - Connection structure and type: 1NC+2NO - Contact operation: stepped switching, BBM.

Property	Value
Opener:	1.0
Normally open:	2.0
Changeover:	0.0
Lenght:	30.0 mm
Width:	31.0 mm
Height:	65.0 mm
Diameter:	0.0 mm
Protection class (IP):	IP66/IP67
Switching function:	Slow action switching element
Actuator:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the electrical connection:	other
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	other
Housing coating:	other
Housing material:	metal
Rated operating current Ie at DC-13, 230 V:	0.1 A
Rated operating current Ie at DC-13, 125 V:	0.0 A
Rated operating current Ie at DC-13, 24 V:	0.0 A
Rated operating current Ie at AC-15, 24 V:	0.0 A
Rated operating current Ie at AC-15, 125 V:	0.0 A
Rated operating current Ie at AC-15, 230 V:	0.75 A
Alignment of the actuating element:	other
Switching function latching:	no
