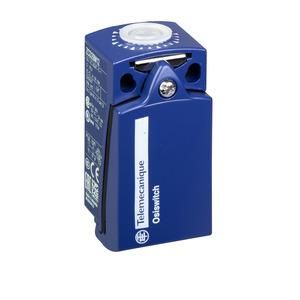

Schneider Electric ZCD68 compact auxiliary switch housing

Schneider Electric ZCD68 compact auxiliary switch housing

In stock

SKU: 686896

Price on request

€40.88

€0

Overview

METAL BODY 1S/1S SLWA GOLD. Product series: OsiSense XC - Series name: Standard Compact - Product or component type: Position switch housing - Device abbreviation: ZCD - Design: Compact - Housing type: Fixed - Associated head: ZCE06, ZCE02, ZCE01, ZCE05 - Connection structure and type: 1S +1S.

< /tr>

Property	Value
Opener:	0.0< /td>
Normally open:	2.0
Changeover:	0.0
Length:	30.0 mm
Width:	31.0 mm
Height:	65.0 mm
Diameter:	0.0 mm
Protection class (IP):	IP66/IP67
Switching function:	Snap-action switching element
Actuating element:	without
Explosion protection category for Dust:	without
Housing design:	Cuboid
Output electronic:	no
Suitable for security functions:	no
With status display:	no
Interface design:	without
Design of the electrical connection:	other
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	other
Housing coating:	other
Housing material:< /td>	Metal
Rated operating current Ie at DC-13, 230 V:	0.1 A
Rated operating current Ie at DC-13, 125 V:	0.0 A
Rated operating current Ie at DC-13, 24 V:	0.0 A
Rated operating current Ie at AC-15, 24 V:	0.0 A
Rated operating current Ie at AC-15, 125 V:	0.0 A
Rated operating current Ie at AC-15, 230 V:	0.75 A
Orientation of the actuator:	other
Switching function latching:	no
