Schneider Electric ZCKM1H29 OES base

In stock

SKU: 677618

Price on request

€23.79

€0

Overview

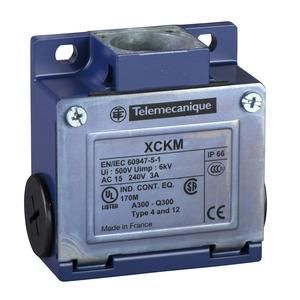

Position switch housing OsiSense XCKM. Switching contacts: 1NO+1NC with snap function, 3 cable entries for M20. Zamak metal housing, metal encapsulated, IP66, IK05.

Property	Value
Opener:	1.0
Maker:	1.0
Changer:	0.0
Lenght:	30.0 mm
Width:	64.0 mm
Height:	64.0 mm
Protection class (IP):	IP65
Switching function:	Snap-action switching element
Actuator:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Interface design:	without
Design of the electrical connection:	Cable entry (metric)
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	metal
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated operating current Ie at AC-15, 230 V:	3.0 A
Alignment of the actuating element:	other
Switching function latching:	no
