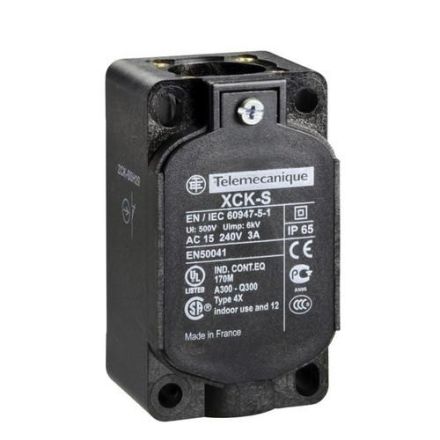

Schneider Electric ZCKS6 SOE base

In stock

SKU: 682728

Price on request

€36.31

€0

Overview

ZCKS position switch housing, 1NC+1NO, stepped switching, Pg 13.5. Product range: OsiSense XC - Series name: Standard format - Product or component type: Position switch housing - Device short name: ZCKS - Housing type: fixed - Product compatibility: XCKS - Associated head: ZCKD49, ZCKD55, ZCKD41, ZCKD31, ZCKD05, ZCKD02, ZCKD019, ZCKD01, ZCKD54, ZCKD08, ZCKD81, ZCKD91, ZCKD029, ZCKD34, ZCKD33, ZCKD39, ZCKD59, ZCKD06 - Connection structure and type: 1NC+1NO - Contact material: silver plated contacts.

Property	Value
Opener:	1.0
Normally open:	1.0
Changeover:	0.0
Lenght:	36.0 mm
Width:	40.0 mm
Height:	73.0 mm
Diameter:	0.0 mm
Protection class (IP):	IP65
Switching function:	Slow action contact with overlap
Actuator:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the electrical connection:	Cable entry PG
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.27 A
Rated operating current Ie at DC-13, 125 V:	0.0 A
Rated operating current Ie at DC-13, 24 V:	0.0 A
Rated operating current Ie at AC-15, 24 V:	0.0 A
Rated operating current Ie at AC-15, 125 V:	0.0 A
Rated operating current Ie at AC-15, 230 V:	3.0 A
Alignment of the actuating element:	other
Switching function latching:	no
