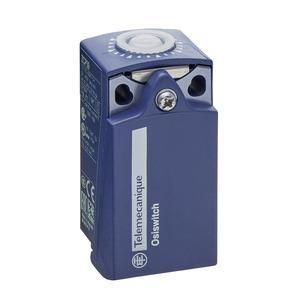

Schneider Electric ZCP39 compact auxiliary switch

In stock

SKU: 677931

Price on request

€21.38

€0

Overview

Auxiliary switch housing for position switch XCK P. ZCP position switch housing. Switching contacts NC + NC + NO, snap switching principle. Plastic encapsulated, W/D/H 30 x 31 x 65 mm (actuator). Protection class IP 66, IP 67 and IK 04.

Property	Value
Opener:	2.0
Maker:	1.0
Changer:	0.0
Length:	30.0 mm
Width:	31.0 mm
Height:	65.0 mm
Diameter:	0.0 mm
Protection class (IP):	IP66/IP67
Switching function:	Snap-action switching element
Actuator:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Electronic output:	no
Suitable for safety functions:	no
With status display:	no
Design of the interface:	without
Design of the electrical connection:	other
Design of the interface for safety-related communication:	without
Ambient temperature during operation:	-25.0 to 70.0 °C
Number of safety-related auxiliary contacts:	0.0
Forced opening:	yes
Explosion protection category for gas:	without
Housing coating:	other
Housing material:	plastic
Rated operating current Ie at DC-13, 230 V:	0.1 A
Rated operating current Ie at DC-13, 125 V:	0.0 A
Rated operating current Ie at DC-13, 24 V:	0.0 A
Rated operating current Ie at AC-15, 24 V:	0.0 A
Rated operating current Ie at AC-15, 125 V:	0.0 A
Rated operating current Ie at AC-15, 230 V:	0.75 A
Alignment of the actuating element:	other
Switching function latching:	no
