Schneider Electric ZD4PA227 2 directions return zero position front ring sc joystick

In stock

SKU: 674759

Price on request

€50.73

€0

Overview

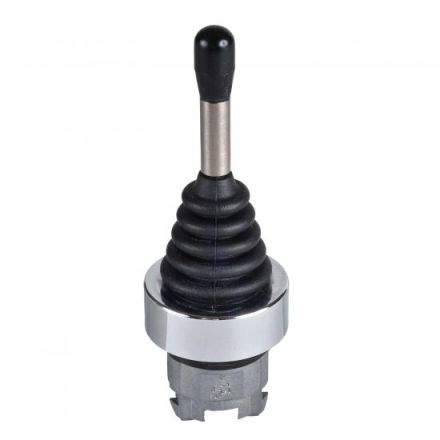

Joystick, 2 directions, 22, with return zero, front ring, black, metal. Product series: Harmony XB4 - Short name of the device: ZB4 - Mounting diameter: 22 mm - Operating direction information: 2 directions.

Property	Value
Number of switching positions:	2.0
Number of actuation directions:	2.0
Number of normally open contacts per actuation direction:	4.0
Open contacts per direction:	0.0
Changeover contacts per direction:	0.0
Joystick length:	54.0 mm
With retraction to zero position:	yes
Analog output signal configurable:	no
Rated operating current Ie at AC-21:	10.0 A
Central fastening, hole diameter:	22.5 mm
Color of front ring:	black
Locking in zero position:	no
Code transmitter:	no
Protection class (IP):	IP66
With front ring:	yes
Front ring material:	metal
Protection class (NEMA):	other
