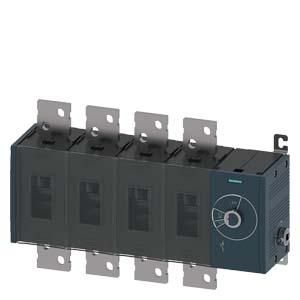

Siemens 3KD5444-0RE40-0 load disconnector 4-pole 1600A size 5

In stock
SKU: 385210
€3,668.29
Into a basketIn the basketGo

Overview

Load-break switch 1600A, size 5, 4-pole, side panel drive on the right, basic unit without handle, flat connection. Load-break switch 3KD up to 1600 A as a powerful main, EMERGENCY STOP or repair switch. Load-break switches 3KD up to 1600 A from Siemens offer reliable personal protection and guarantee high system availability in industry, infrastructure and buildings. As a main, EMERGENCY STOP or repair switch, load-break switches 3KD reliably switch electrical equipment under load and offer a safety disconnection function and distance in low-voltage circuits. 1. Reliable protection against electrical accidents. 2. Robust technology for high system availability. 3. Versatile with variable connection and drive types. 4. Easy retrofitting of additional functions thanks to extensive accessories. 5. Fast installation on the DIN rail for sizes up to 200 A. 6. Efficient engineering through extensive CAx data. 7. Uncomplicated documentation with the manual configurator. 8. Suitable for wind power and solar systems. www.siemens.de/schaltgeraete. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.

Property Value
Number of poles: 4
Rated operating power at AC-23, 400 V: 900 kW
Number of auxiliary contacts as normally closed contacts: 8
Number of auxiliary contacts as normally open contacts: 8
Rated continuous current Iu: 1600 A
Max. Rated operating voltage Ue at AC: 1000 V
Version as EMERGENCY STOP device: no
Suitable for floor mounting: yes
Integrated motor drive: no
Suitable for front mounting 4-hole: no
Version as maintenance/repair switch: yes
Voltage release optional: no
Suitable for front mounting central: no
Version as main switch: yes
Version as safety switch: yes
Motor drive optional: no
Lockable: no
Version as reversing switch: no
Rated short-time withstand current Icw: 55 kA
Color of the actuating element: other
Switching capacity at 400 V: 400 kW
Rated continuous current at AC-21, 400 V: 1600 A
Number of switches: 1
Rated continuous current at AC-23, 400 V: 1600 A
Protection class (NEMA): other

Characteristics

HAB3KD5444-0RE40-0 4-pole 1600A size. 5
ManufacturerSIEMENS
HAN3KD5444-0RE40-0
GTIN4001869473499
Number of auxiliary contacts as normally open8
Number of auxiliary contacts as normally closed8
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Rated operational power at AC-23, 400 V900kW
Rated continuous current Iu1600A
Rated continuous current at AC-21, 400 V1600A
Rated continuous current at AC-23, 400 V1600A
Rated short-time withstand current Icw55kA
Color of the actuatorOther
Suitable for floor mountingYes
Suitable for front mounting 4-holeNo
Suitable for front mounting CentralNo
Max. rated operating voltage Ue at AC1000V
Motor drive integratedNo
Motor drive optionalNo
Number of poles4
Switching capacity at 400 V400kW
Protection class (NEMA)Other
Voltage release optionalNo
LockableNo
