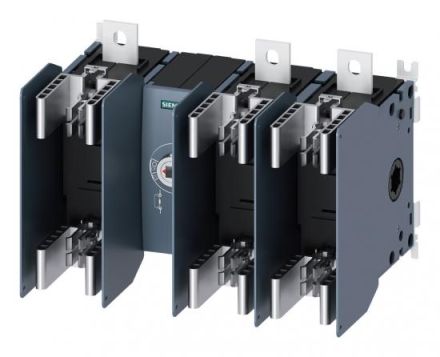

Siemens 3KF4340-0MF51 3KF SITOR 400A size. 4 3-pole load disconnector

Siemens 3KF4340-0MF51 3KF SITOR 400A size. 4 3-pole load disconnector

In stock

SKU: 774750

Price on request

€810.74

€0

Into a basketIn the basketGo

Overview

Load-disconnector with fuse 3KF SITOR, 400A, size 4, 3-pole, for NH fuse size. 1 and 2 for semiconductor protection, front drive, centered, basic device without handle, flat connection without fuses

Property	Value
Rated continuous current Iu:	400 A
Protection class (IP), front:	IP00
Number of poles:	3
Design as main switch:	yes
Suitable for front mounting:	no
Suitable for floor mounting:	yes
With fuse monitoring:	no
Designed as an EMERGENCY STOP device:	yes
Conditional rated short-circuit current Iq:	100 kA
Designed as a safety switch:	yes
Max. Rated operating voltage Ue at AC:	690 V
Motor drive integrated:	no
Rated short-time withstand current Icw:	12 kA
Motor drive optional:	no
Rated operating power at AC-23, 400 V:	220 kW
Equipped with connectors:	no

Characteristics

HAB3KF SITOR 400A size. 4 3-pin

Manufacturer

HAN3KF4340-0MF51

GTIN4001869564777

Designed as main switchYes

Designed as an EMERGENCY STOP deviceYes

Designed as a safety switchYes

Conditional rated short-circuit current Iq100kA

Rated operational power at AC-23, 400 V220kW

Rated continuous current Iu400A

Rated short-time withstand current Icw12kA

Suitable for floor mountingYes

Suitable for front mountingNo

Max. rated operating voltage Ue at AC690V

With fuse monitoringNo

Equipped with connectorsNo

Motor drive integratedNo

Motor drive optionalNo

Number of poles3

Protection class (IP), frontIP00

Siemens 3KF4340-0MF51 3KF SITOR 400A size. 4 3-pole load disconnector

Siemens 3KF4340-0MF51 3KF SITOR 400A size. 4 3-pole load disconnector

Price on request

€810.74

€0

Into a basketIn the basketGo
