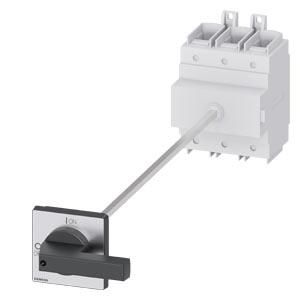

HAB3LD2318-0TK11 3-pole floor mounting
HAN3LD2318-0TK11
GTIN4011209768611
Number of switches1
Designed as main switchYes
Designed as an EMERGENCY STOP deviceNo
Designed as a safety switchYes
Designed as a maintenance/repair switchYes
Version as reversing switchNo
Rated operational power at AC-23, 400 V75kW
Rated operational power at AC-3, 400 V50kW
Rated continuous current Iu160A
Rated continuous current at AC-21, 400 V160A
Rated continuous current at AC-23, 400 V132 A
Rated short-time withstand current Icw4kA
Suitable for floor mountingYes
Suitable for front mounting 4-holeYes
Suitable for front mounting CentralNo
Max. rated operating voltage Ue at AC690V
Motor drive integratedNo
Motor drive optionalNo
Number of poles3
Protection class (NEMA)Other
Voltage release optionalNo
LockableYes
