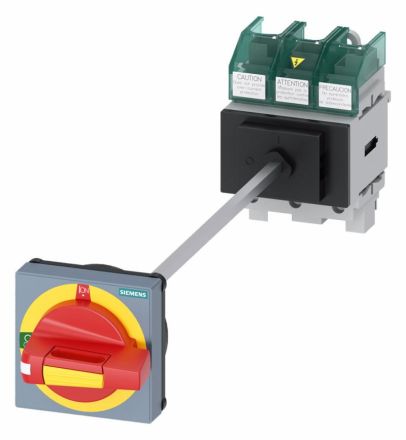

Siemens 3LD52100TK13 Sentron 3LD5 UL emergency stop switch 3-pole switch disconnector

SENTRON, load disconnector 3LD5 UL, emergency stop switch, 3-pole, approved according to UL489, UL60947-4-1 and IEC60947-3, UL: 60A, SCCR 50kA at 480VAC, operating power @ 480VAC 3-phase: 40hp, IEC: 63A, operating power at AC-23A at 400V: 30kW, floor mounting with door coupling, defeatable rotary drive, EMERGENCY STOP, 4-hole mounting of the handle, without tolerance compensation, including terminal covers for the feed-in side The main and emergency stop switch 3LD for safe shutdown of loads in a wide variety of environments. The application possibilities of the 3LD3 network disconnectors are diverse. After the power supply is disconnected, they ensure that all electrical equipment is safely disconnected, for example switching three-phase motors, but also air conditioning and ventilation systems. 3LD3 are also ideal for use in control or switch cabinets, particularly for applications in small machines (e.g. saws, compressors, pumps, concrete mixers, drilling machines, milling machines and woodworking machines). The Siemens 3LD main and emergency stop switches are characterized by: 1. Modular design, quick and easy installation of auxiliary switches, N-PE terminal or 4th pole. 2. Versatile use thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Can be used for DC applications. 5. Mounting types: front mounting, mounting plate, top hat rail. 6. Optimum mains separation from 16 A to 63 A thanks to the lockable rotary drive.
