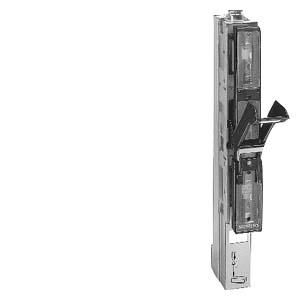

Siemens 3NJ4103-3BF12 fuse switch disconnector 3-pole M8

In stock
SKU: 367348
€75.45
Into a basketIn the basketGo

Overview

Fuse switch disconnector, 3-pole switchable, size 00 I=160A, U=690V Screw connection M 8 new design Current transformer installation possible The 3NJ4 fuse switch disconnectors for low-voltage distribution. The 1- or 3-pole switchable 3NJ4 fuse switch disconnectors can be used in low-voltage distributors, network and transformer stations and cable distribution cabinets. The Siemens 3NJ4 fuse switch disconnectors are characterized above all by: 1. Compliance with the provisions of IEC/EN 60439-1 and IEC/EN 60947-3. 2. Voltage levels up to AC 690 V. 3. Parking position for maintenance work. 4. Vertical and horizontal installation position. 5. Climatic resistance. 6. Protection class IP30 with closed handle inserts, IP10 with open handle inserts. www.siemens.de/schaltgeraete. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe, efficient electrical infrastructure in buildings and industry.

Property Value
Double interrupting: no
Max. Rated operating voltage Ue at AC: 690 V
Rated continuous current Iu: 160 A
Rail center distance 40 mm: no
Rail center distance 50 mm: no
Rail center distance 60 mm: no
Number of poles: 3
Rail center distance 100 mm: yes
Rail centre distance 185 mm: no

Characteristics

HAB3NJ4103-3BF12 3-pin M8
ManufacturerSIEMENS
HAN3NJ4103-3BF12
GTIN4011209687707
Rated continuous current Iu160A
Max. rated operating voltage Ue at AC690V
Number of poles3
