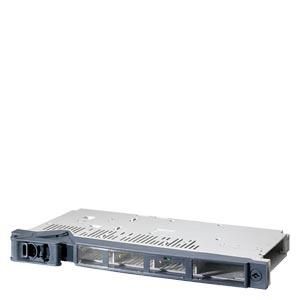

Siemens 3NJ6203-1AA00-1EE1 switch disconnector NH00 160A 3-pole

In stock

SKU: 376380

Price on request

€575.97

€0

Overview

Load-break switch with fuses, strip design, pluggable NH00 160A, 3-pole, standard switching capacity S, manual operation without auxiliary switch, 1 current transformer to 1 ammeter, moving iron, multifunctional plug 150/1A, class 1

Property	Value
Connection type main circuit:	Bolt connection
Design:	Fuse load-break switch
Conditional rated short-circuit current Iq:	55.0 kA
Double interrupting:	yes
Max. rated operating voltage Ue at AC:	690 V
Rated continuous current Iu:	160.0 A
Rail center distance 40 mm:	no
Rail center distance 50 mm:	no
Rail center distance 60 mm:	no
Number of poles:	3
Size of the fuse link:	NH00
Rail centre distance 100 mm:	no
Rail centre distance 185 mm:	yes
