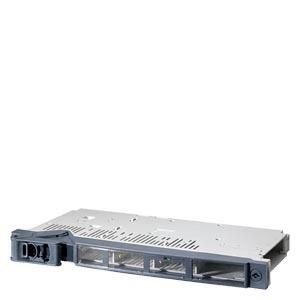

Siemens 3NJ6203-1AC03-1EE4 switch disconnector NH00 160A

In stock

SKU: 378874

Price on request

€1,132.61

€0

Overview

Load-break switch with fuses, bar design, plug-in NH00 160A, 3-pole, standard switching capacity S, manual operation, fuse monitoring EFM 20 1NO+1NC, auxiliary switch on multifunction plug, 1 current transformer on 1 ammeter, moving iron multifunction plug 150/5A, class 1

Property	Value
Connection type main circuit:	other
Conditional rated short-circuit current Iq:	55.0 kA
Double interrupting:	no
Max. Rated operating voltage Ue at AC:	690 V
Rated continuous current Iu:	160 A
Rail center distance 40 mm:	no
Rail center distance 50 mm:	no
Rail center distance 60 mm:	no
Number of poles:	3
Rail center distance 100 mm:	no
Rail centre distance 185 mm:	yes
