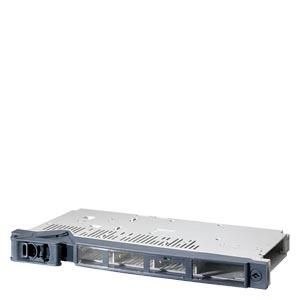

Siemens 3NJ6203-3AB03-1DD1 switch disconnector NH00 160A

In stock

SKU: 342284

Price on request

€967.44

€0

Overview

Load-break switch with fuses, strip design, pluggable NH00 160A, 3-pole, high switching capacity H manual operation, fuse monitoring EFM 10 1NO+1NC auxiliary switch on multi-function plug 1 current transformer on 1 ammeter, moving iron 100/1A, class 1 2-way overload

Property	Value
Connection type main circuit:	Bolt connection
Design:	Fuse load-break switch
Conditional rated short-circuit current Iq:	66.0 kA
Double interrupting:	yes
Max. Rated operating voltage Ue at AC:	690 V
Rated continuous current Iu:	160.0 A
Rail center distance 40 mm:	no
Rail center distance 50 mm:	no
Rail center distance 60 mm:	no
Number of poles:	3
Size of the fuse link:	NH00
Rail centre distance 100 mm:	no
Rail centre distance 185 mm:	yes
