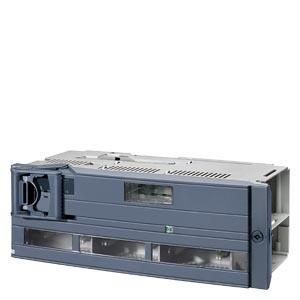

Siemens 3NJ6223-3AA03-0AA0 switch disconnector NH2 400A 3-pole 1NO+1NC

In stock

SKU: 382845

Price on request

€1,035.01

€0

Overview

Load-break switch with fuses, bar design, plug-in NH2 400A, 3-pole, high switching capacity H, manual operation 1NO+1NC, auxiliary switch on multifunction plug, without current transformer, without ammeter

Property	Value
Type of connection main circuit:	Bolt connection
Design:	Fuse load-break switch
Conditional rated short-circuit current Iq:	66.0 kA
Double interrupting:	yes
Max. Rated operating voltage Ue at AC:	690 V
Rated continuous current Iu:	400.0 A
Rail center distance 40 mm:	no
Rail center distance 50 mm:	no
Rail center distance 60 mm:	no
Number of poles:	3
Size of the fuse link:	NH2
Rail centre distance 100 mm:	no
Rail centre distance 185 mm:	yes
