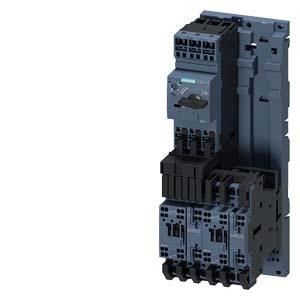

Siemens 3RA2220-4NF27-0AP0 load feeder reversible S0 23.28A AC 230V Hutsch.

Consumer feeder without fuse, reversing operation AC 400 V, size S0 23.0...28.0 A AC 230 V spring-loaded connection for DIN rail mounting with DIN rail adapter (also fulfills coordination type 1) coordination type 2, Iq = 150 kA 1S+1Oe (contactor) SIRIUS 3RA22 reversing starter for protecting and starting motors. The 3RA22 reversing starter is a tested and factory-preassembled combination of a 3RV2 circuit breaker and two 3RT2 contactors, which are already wired and mechanically and electrically connected. They are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. The 3RA2 load feeders are available with AC and DC operation in sizes S00, S0 and S2 with setting ranges from 0.14 to 65 A. They are available with screw and spring-loaded connection technology for mounting on a standard rail, screw fastening and mounting on a 60 mm busbar. In addition, we offer over 40,000 other tested combinations of individual devices for protecting, switching and starting a wide variety of applications up to 630 A. All accessories for the 3RV2 circuit breakers and 3RT2 contactors are standardized for all sizes and can also be used for the load feeders. The optional SIRIUS 3RV29 feeder system (for S00 and S0) significantly reduces the wiring effort. The 3RA22 load feeders replace the proven 3RA12 series. Simple, efficient, always up-to-date - the SIRIUS modular system. SIRIUS 3RA22 reversing starter for protecting and starting motors. The 3RA22 reversing starter is a tested and factory-preassembled combination of a 3RV2 circuit breaker and two 3RT2 contactors that are already wired and mechanically and electrically connected. They are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. The 3RA2 load feeders are available with AC and DC operation in sizes S00, S0 and S2 with setting ranges from 0.14 to 65 A. They are offered with screw and spring-loaded connection technology for mounting on a standard mounting rail, screw fastening and mounting on a 60 mm busbar. In addition, we offer over 40,000 other tested combinations of individual devices for protecting, switching and starting a wide variety of applications up to 630 A. All accessories for the 3RV2 circuit breakers and 3RT2 contactors are standardized for all sizes and can also be used for the load feeders. The optional SIRIUS 3RV29 feeder system (for S00 and S0) significantly reduces the wiring effort. The 3RA22 load feeders replace the proven 3RA12 series. Simple, efficient, always up-to-date - the SIRIUS modular system.
