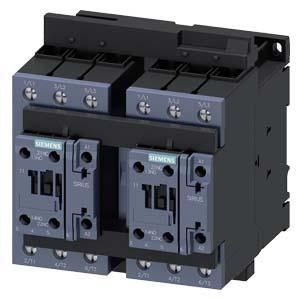

Siemens 3RA2335-8XB30-1NB3 reversing combination AC3 18.5kW/400V AC/DC 20-33V 2S

In stock
SKU: 349048
€477.60
Into a basketIn the basketGo

Overview

Reversing combination AC-3,18.5 kW/400 V,AC/DC 20-33V 3-pole, size S2 screw connection electrical and mechanical interlock 2 S integrated reversing combination SIRIUS 3RA23 for switching motors including changing the direction of rotation. The 3RA23 reversing combination is a tested and factory-preassembled combination of two 3RT2 contactors of the same power, which are already fully wired and mechanically and electrically interlocked. They are climate-resistant, approved worldwide (e.g. IEC and UL/CSA) and IE3/IE4 ready. The 3RA23 reversing combinations are available with AC and DC operation in sizes S00 to S3. They are offered with screw and spring-loaded connection technology for mounting on a DIN rail or screw fastening. The accessories for the 3RT2 contactors are standardized for all sizes and can also be used for the contactor assemblies. The 3RA23 reversing assemblies replace the proven 3RA13 series. Simple, efficient, always up-to-date - the SIRIUS modular system.

Property Value
Voltage type for actuation: AC/DC
Rated operating power at AC-3, 400 V: 18.5 kW
Rated control supply voltage Us at AC 50 Hz: 20 to 33 V
Rated control supply voltage Us at AC 60 Hz: 20 to 33 V
Rated control supply voltage Us at DC: 20 to 33 V
Degree of protection (IP): IP20
Rated operational current Ie at AC-3, 400 V: 41 A
Rated operational power NEMA: 22.064962499 kW

Characteristics

HABAC3 18.5kW/400V AC/DC 20-33V 2S
ManufacturerSIEMENS
HAN3RA2335-8XB30-1NB3
GTIN4011209937871
Rated operating power NEMA22.064962499kW
Rated operational power at AC-3, 400 V18.5kW
Rated operational current Ie at AC-3, 400 V41 A
Rated control supply voltage Us at AC 50 Hz20 to 33 V
Rated control supply voltage Us at AC 60 Hz20 to 33 V
Rated control supply voltage Us at DC20 to 33 V
IP protection)IP20
Voltage type for actuationAC/DC
